特雷克斯TR60配件
ITEM PART NO. DESCRIPTION
1 9015394 BUSHING
2 271612 BOLT
3 220081 NUT
4 103332 LOCK WASHER
5 271619 BOLT
6 271621 BOLT
7 15303749 WASHER HARDENED
8 9355771 NUT
9 15250985 SPRING-DISC
10 9011226 WASHER
11 15303750 SPACER
12 15020053 WASHER
HOOD AND MOUNTING
ITEM PART NO. DESCRIPTION
1 179885 BOLT
2 9267949 WASHER-HARDENED
3 120378 NUT
FENDERS AND MOUNTING
ITEM PART NO. DESCRIPTION
1 9113457 LOCK WIRE
2 9270000 WASHER-HARDENED
3 9019631 WASHER-HARDENED
4 271612 BOLT
5 9355771 NUT
6 9250715 WASHER-HARDENED
7 179887 BOLT T50
8 274209 LOCKNUT
9 9267949 WASHER-HARDENED
10 9077400 MIRROR
11 179885 BOLT T50
12 15246087 MIRROR-WIDE ANGLE
13 271614 BOLT
14 179889 BOLT T50
15 179880 BOLT
16 6350625 BOLT
17 15304667 MIRROR ATTACHMENT ASS
18 15304670 MIRROR ARM ASSEMBLY
19 15304663 BAR MIRROR MTG
20 15304704 ROD ASSEMBLY
21 15304671 BRACKET ASSY
22 179820 BOLT
23 103320 LOCK WASHER
24 103340 WASHER
25 109084 NUT T50
26 103319 LOCK WASHER
27 103339 WASHER
28 179795 BOLT
29 15302982 U BOLT
30 102639 NUT
31 9354243 LOCKNUT
LADDERS AND HANDRAILS
ITEM PART NO. DESCRIPTION
1 15302982 U BOLT
2 15255698 STEP ASSY
3 179841 BOLT
4 179893 BOLT
5 274209 LOCKNUT
6 179885 BOLT
7 9267949 WASHER-HARDENED
8 9417713 NUT
9 9060202 WASHER-HARDENED
RADIATOR GUARD AND MOUNTING
ITEM PART NO. DESCRIPTION
1 106263 WASHER T50
2 179839 BOLT
3 179891 BOLT
4 120378 NUT
5 179885 BOLT T50
6 179891 BOLT
7 9270000 WASHER-HARDENED
8 274209 LOCKNUT
MUDGUARDS
ITEM PART NO. DESCRIPTION
1 15249109 MUDFLAP
2 179885 BOLT
3 103329 LOCK WASHER
4 120378 NUT
5 15300760 MUDFLAP
6 15300762 MUDFLAP
7 15300750 MUDFLAP
8 179883 BOLT
ENGINE AND MOUNTING
ITEM PART NO. DESCRIPTION
1 274098 LOCKNUT
2 271558 BOLT
3 103331 LOCK WASHER
4 15256879 BOLT
5 15235607 WASHER
6 15235693 MOUNT-ENG ISOLATION
7 271621 BOLT
8 9355771 NUT
9 15228210 COUPLING-DRIVE
10 9060202 WASHER-HARDENED
11 9423067 BOLT
12 15252692 FLANGE-COUPLING
13 9409907 BOLT
14 9379664 CLAMP
15 103329 LOCK WASHER
16 9268885 LOCK
17 9181284 CLIP-RUBBERIZED
18 15266844 FILTER-LUBE OIL
19 15266845 FILTER WF-15DCA4
20 7551826 HOSE-BULK
21 9134207 HOSE
22 103319 LOCK WASHER
23 109084 NUT
24 103320 LOCK WASHER
25 102634 NUT
26 179839 BOLT
27 106263 WASHER
28 274208 LOCKNUT
29 15273589 FAN BELT
AIR CLEANER
ITEM PART NO. DESCRIPTION
1 15254860 AIR CLEANER
2 15270188 ELEMENT-MAIN
3 15270189 ELEMENT-SAFETY
4 15270190 COVER ASSY
5 15270191 LATCH
6 15270192 VALVE-VACUATOR
AIR CLEANER PIPES AND HOSES
ITEM PART NO. DESCRIPTION
1 179883 BOLT
2 9270000 WASHER-HARDENED
3 9060202 WASHER-HARDENED
4 179841 BOLT
5 274208 LOCKNUT
6 9004851 CAP ASSY
7 9229246 CLAMP
8 9071447 CLAMP
9 15253938 HOSE-HUMP
10 9197104 ELBOW
11 15235949 GAUGE-AIR RESTRICT
12 9233142 TUBE-NYLON 4MM
13 9197976 HOSE-HUMP
POWER TAKEOFF-ENG
ITEM PART NO. DESCRIPTION
1 15252682 PTO ASSEMBLY
2 9060235 HOUSING ASSY MACHD
3 784079 PIN
4 454864 BOLT
5 103320 LOCK WASHER
6 9004541 SEAL
7 444637 PLUG（0.75 IN）
8 179826 BOLT
9 9004540 SEAL
10 954528 BEARING
11 907696 BEARING
12 9274893 GEAR-DRIVEN
13 444692 PLUG
14 9195847 GEAR-DRIVE
15 15252439 SHAFT-DRIVE PTO
16 144218 BUSHING
17 9414895 RING-SNAP
18 9195842 GASKET
19 187396 COUPLING
20 15247042 BREATHER ASSY
21 6750967 CAP-BREATHER
22 444698 PLUG
23 179874 BOLT
24 103328 LOCK WASHER
25 15300845 YOKE-PTO
26 9071870 WASHER
27 9269703 NUT LOCK
TRANSMISSION MOUNTING
ITEM PART NO. DESCRIPTION
1 9195340 CAP-FILLER
2 2337379 CLAMP
3 9141843 HOSE
4 271565 BOLT
5 103331 LOCK WASHER
6 15301183 BOLT-24MM*175
7 15235606 WASHER-SNUBBING
8 15251433 BOLT
9 15235607 WASHER
10 274098 LOCKNUT
11 9357070 CONNECTOR
12 9357072 ELBOW
13 179795 BOLT
14 9066008 RING
15 103319 LOCK WASHER
16 109084 NUT
17 9233796 TUBE-NYLON
18 114981 COCK-DRAIN
19 179887 BOLT T50
20 15257170 ADAPTER
21 186646 BOLT
22 9270000 WASHER-HARDENED
23 274766 NUT
TRANSMISSION BREAKDOWN
ITEM PART NO. DESCRIPTION
1 29510838 BOLT
2 6755269 STRIP
3 6772140 SHIM-.025
4 6772182 NUT
5 15300846 YOKE-TRANS INPUT
6 15300847 YOKE-TRANS OUTPUT
CONTROL VALVE
ITEM PART NO. DESCRIPTION
1 6777974 GASKET
2 6830003 WASHER
3 23018739 BOLT
4 9409030 BOLT
5 29528652 GASKET
6 29528651 GASKET
7 103339 WASHER
8 9427847 BOLT
9 9433579 BOLT
10 23045756 HARNESS ASSY
11 12052410 TERMINAL
12 12059716 CONNECTOR-BODY
13 6779833 GASKET
14 454813 BOLT
15 23019734 SOLENOID-12V
16 29524652 SCREW
17 6833223 SPRING-OUTER
18 6830243 SPRING-INNER
19 6880172 VALVE
20 6880187 BALL-CHECK
21 29525044 PLUG ASSY
22 29530896 GASKET
23 29513460 HARNESS
24 454815 BOLT
25 450517 BOLT
26 186284 BOLT
27 29506298 SOLENOID
28 115547 LOCK WASHER
29 138202 BOLT
POWER TAKEOFF-TRANS
ITEM PART NO. DESCRIPTION
1 9182509 PTO ASSY
2 9413386 RING
3 907559 BEARING
4 9413409 RING
5 9182510 SHAFT
6 9182507 GEAR
7 219305 PLUG-PIPE
8 9148275 O RING
9 9182511 SHAFT
10 907451 BEARING
11 9182508 GEAR
12 102578 SCREW
13 9182350 HOUSING
14 444625 PLUG （0.38 IN）
15 907561 BEARING
16 9003659 SHIM （0.008 IN）
17 9003530 SHIM （0.020 IN）
18 9003658 SHIM （0.003 IN）
19 179862 BOLT
20 103328 LOCK WASHER
21 444613 PLUG
22 15252873 ADAPTOR
23 15253257 HOSE ASSY
24 15252983 ELBOW
FILTER
ITEM PART NO. DESCRIPTION
1 15270496 ELEMENT
2 23018958 SEAL
3 29529657 SWITCH
OIL LINES-TRANSMISSION
ITEM PART NO. DESCRIPTION
1 15253217 ADAPTOR
2 15258034 HOSE ASSY
3 15258035 HOSE ASSY
4 103329 LOCK WASHER
5 179885 BOLT
RETARDER CONTROL LINES-HYD
ITEM PART NO. DESCRIPTION
1 9241275 CLEVIS
2 15304629 CYLINDER
3 15021239 LINK
4 103498 PIN
5 137185 PIN-COTTER
6 9236064 KEY
7 9148477 LEVER
8 15021238 LEVER
9 427574 BOLT
10 9417713 NUT
11 9153476 SEAL
12 15255351 HOSE ASSY
13 15233866 ADAPTOR
14 15255352 HOSE ASSY
15 15251979 ADAPTOR
16 15252977 TEE
17 15253157 ELBOW-BULKHEAD
18 15255350 HOSE ASSY
19 15255349 HOSE ASSY
20 15253039 ADAPTOR-BULKHEAD
21 15255377 HOSE ASSY
22 15253087 HOSE ASSY
23 9218975 PIN-CLEVIS
24 15255584 BRACKET-SOLENOID
25 15255442 ELBOW
26 9429209 NUT
27 110633 NUT
FRONT COVER AND CONVERTER GROUP
ITEM PART NO. DESCRIPTION
1 6773186 SEAL
2 181415 BOLT
3 6768689 COVER
4 5181902 GASKET
5 23041458 BEARING
6 29519116 HOUSING ASSY
7 455366 PIN DOWEL
8 23016058 PLATE
9 23041452 BEARING
10 6838403 RING-SNAP
11 6774703 RING-SNAP
12 23019639 TURBINE
13 6774708 NUT
14 6758485 WASHER
15 6774710 PLATE
16 23041915 BEARING
17 6830003 WASHER
18 9420572 BOLT
19 29503632 GEAR-INPUT ACC DRIVE
20 103322 LOCK WASHER
21 271505 NUT
22 6752849 SEAL
23 6752848 SEAL
24 23016057 PISTON
CONVERTER HOUSING GROUP
ITEM PART NO. DESCRIPTION
1 179891 BOLT
2 103339 WASHER
3 6774735 GEAR-IDLER OIL PUMP
4 23048022 ROLLER BEARING
5 23047992 BEARING
6 6755986 GEAR-DRIVE OIL PUMP
7 444692 PLUG
8 444688 PLUG
9 6779451 GASKET
10 6830021 SEAL
11 23019731 SEAL
12 179838 BOLT
13 103321 LOCK WASHER
14 6882702 GASKET
15 23047992 BEARING
16 103341 WASHER
17 6755403 PIN
18 29503803 GASKET
19 179837 BOLT
20 179860 BOLT
21 103322 LOCK WASHER
22 6779125 FLANGE
23 23046148 HOSE ASSY
24 23048022 ROLLER BEARING
25 6758442 GASKET
26 6768990 COVER-PTO
27 179857 BOLT
OIL PUMP
ITEM PART NO. DESCRIPTION
1 179845 BOLT
2 103321 LOCK WASHER
3 6758218 GASKET
4 9418964 BOLT
5 179839 BOLT
6 6758218 GASKET
7 6880125 PUMP ASSY
8 148415 BEARING
9 6769413 GASKET
10 6769722 GEAR-DRIVE
11 6756124 GASKET
12 6776451 SCREEN
13 6756002 GASKET
FILTER ADAPT/REGULATOR VALVES
ITEM PART NO. DESCRIPTION
1 9409045 BOLT
2 9422848 WASHER
3 6758461 PLUG
4 23016548 GASKET
LOCKUP VALVE
ITEM PART NO. DESCRIPTION
1 6880860 GASKET
2 6771005 RING
3 6758543 PLUG
4 6838520 SPRING
5 6770023 VALVE
6 29525044 PLUG ASSY
7 23045876 GASKET
8 23019734 SOLENOID-12V
9 103339 WASHER
10 454815 BOLT
11 23045794 HARNESS
12 23046474 CONNECTOR-RECEPTACLE
13 12059716 CONNECTOR-BODY
14 12052410 TERMINAL
RETARDER GROUP
ITEM PART NO. DESCRIPTION
1 23019730 SEAL
2 23019649 SEAL
3 6774290 SEAL
4 23019729 SEAL
5 103323 WASHER
6 23014166 HUB
7 179883 BOLT
8 179885 BOLT
9 6779451 GASKET
RETARDER CONTROL VALVE
ITEM PART NO. DESCRIPTION
1 433114 BOLT
2 103321 LOCK WASHER
3 6758381 GASKET
4 29525030 BODY-RETARDER C/VALVE
5 23018483 VALVE
6 6758380 GASKET
7 179839 BOLT
SPLITTER GEARING AND CLUTCHES
ITEM PART NO. DESCRIPTION
1 23011150 RING-SNAP
2 23019650 SEAL
3 29533089 HUB
4 6832481 KIT-SEAL
5 6770623 SEAL
6 6777908 PISTON-SPLITTER LOW
7 6756042 SPRING-RETURN
8 23041616 PLATE-INTER SPLINTED
9 6776610 PLATE-REACTION
10 23048003 BEARING
11 6772143 GEAR
12 6779801 CARRIER ASSY
13 23015601 WASHER
14 6771316 PINION-SET
15 6884835 BEARING
16 6839418 SPINDLE
17 6758367 HUB
18 6759340 ANCHOR
19 6835742 SPRING
20 23017739 GUIDE
21 6832482 SEAL
22 6832483 SEAL
23 6771690 KEY
MAIN HOUSING GROUP
ITEM PART NO. DESCRIPTION
1 444335 REDUCER
2 103323 WASHER
3 179887 BOLT
4 179837 BOLT
5 9414052 BOLT
6 23041458 BEARING
7 6759381 JUMPER-TUBE
8 103325 WASHER SPRING LOCK
9 271560 BOLT
10 6758437 GASKET
11 103319 LOCK WASHER
12 179838 BOLT
13 103321 LOCK WASHER
14 9418964 BOLT
15 187152 BOLT
HIGH RANGE GEARING AND CLUTCHES
ITEM PART NO. DESCRIPTION
1 23019650 SEAL
2 6770623 SEAL
3 6832481 KIT-SEAL
4 6775840 PISTON
5 6756042 SPRING-RETURN
6 23041616 PLATE-INTER SPLINTED
7 6769326 PLATE-EXTER SPLINTED
8 6770848 PLATE-BACKING
INTER RANGE GEARING AND CLUTCHES
ITEM PART NO. DESCRIPTION
1 6758397 GEAR-INTER RANGE SUN
2 6759377 SPINDLE
3 23015601 WASHER
4 6884835 BEARING
5 6771316 PINION-SET
6 23041530 BEARING
7 6769289 SEAL
8 23016615 BOLT
9 23041616 PLATE-INTER SPLINTED
10 6769326 PLATE-EXTER SPLINTED
11 6832484 SEAL
12 6831033 PISTON
13 6832485 SEAL
LOW RANGE GEARING AND CLUTCHES
ITEM PART NO. DESCRIPTION
1 6831151 SHAFT-SPLITTER
2 23047981 BEARING
3 23041007 WASHER
4 23011176 BEARING
5 6832007 PINION SET
6 6758540 SPINDLE
7 9369203 WASHER
8 6768478 KEY
9 23041616 PLATE-INTER SPLINTED
10 6769326 PLATE-EXTER SPLINTED
11 6832484 SEAL
12 6832486 SEAL
REV RANGE GEARING AND CLUTCHES
ITEM PART NO. DESCRIPTION
1 23016615 BOLT
2 6775717 CARRIER
3 6768499 WASHER
4 6769261 SPACER
5 6776022 PINION SET
6 6756275 ROLLER
7 6832487 SEAL
8 23041147 BEARING
9 23041616 PLATE-INTER SPLINTED
10 6769326 PLATE-EXTER SPLINTED
11 6832484 SEAL
REAR COVER GROUP
ITEM PART NO. DESCRIPTION
1 6772162 GASKET
2 29525020 HOUSING
3 6838043 GASKET
4 103325 WASHER SPRING LOCK
5 271569 BOLT
6 6838041 SPACER
7 23047997 BEARING
8 6768827 WASHER
9 223435 BOLT
10 6880756 RETAINER
11 6757563 BAFFLE-DUST SHIELD
12 6773311 SEAL
13 119247 NIPPLE
14 271569 BOLT
15 552868 GASKET
16 23015481 PICKUP-MAGNETIC
FRONT DRIVELINE
ITEM PART NO. DESCRIPTION
1 15300843 DRIVELINE-FRONT
2 15272772 U-JOINT ASSY
3 15272770 SCREW
REAR DRIVELINE
ITEM PART NO. DESCRIPTION
1 15300992 DRIVELINE-REAR
2 15272865 U-JOINT ASSY
3 15272863 SCREW
WHEEL，RIM AND TYPE-FRONT
ITEM PART NO. DESCRIPTION
1 15246296 WHEEL HUB DRIVEN
2 9253468 STUD
3 9250686 RING
4 9016971 WASHER
5 9433277 CONE-INNER BEARING
6 9433278 CUP-INNER BEARING
7 9207478 GASKET
8 15022012 BASE
9 15013508 BAND-BEAD SEAT
10 15013509 LOCK RING
11 9239465 FLANGE
12 15231505 VALVE ASSY
13 9142286 CORE
14 9116292 CAP
15 9432641 CUP-OUTER BEARING
16 9432640 CONE-OUTER BEARING
17 9253679 SHIM .005
18 9253681 SHIM .020
19 9253680 SHIM .007
20 9253619 PLATE
21 9253620 BOLT
22 9115806 CAP-HUB
23 179881 BOLT
24 103329 LOCK WASHER
25 15023746 CLAMP
26 15001293 OIL SEAL
27 9113457 LOCK WIRE

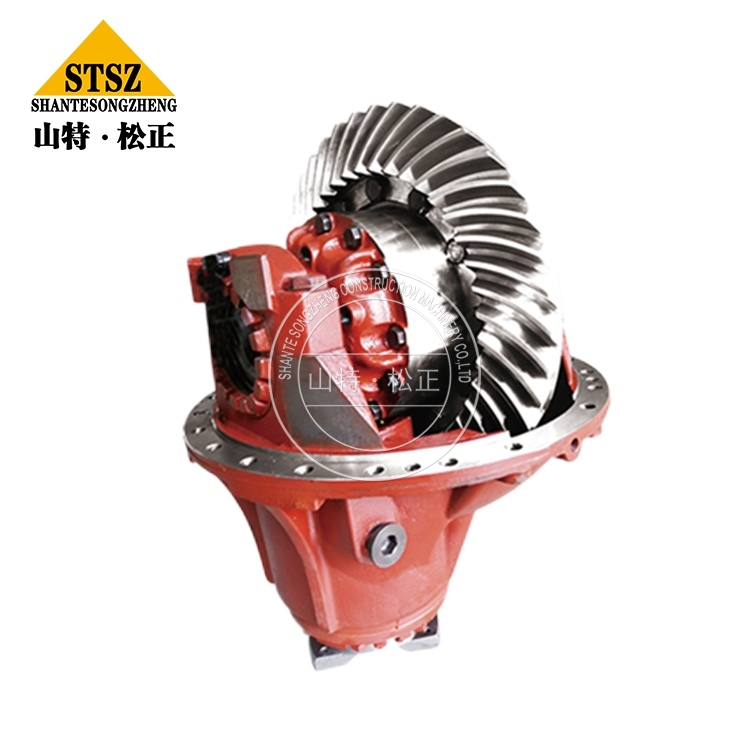

DIFFERENTIAL-BEAR
ITEM PART NO. DESCRIPTION
1 223432 BOLT
2 9245141 RETAINER
3 139230 SCREW
4 15300937 YOKE COMPLETE-DIFF I
5 9231786 SLEEVE
6 9113457 LOCK WIRE
7 271562 BOLT
8 9245137 SHIM
9 9245138 SHIM
10 9245139 SHIM
11 15244310 SEAL
12 9423967 BEARING ASSY
13 9423968 CONE
14 9423969 CUP
15 15021458 GEAR SET
16 9428204 BEARING ASSY
17 9428205 CONE
18 9428206 CUP
19 9245134 SHIM
20 9245135 SHIM
21 9245133 SHIM
22 9192618 DOWEL-ADJUSTER
23 9216692 BEARING ASSY
24 9170517 CUP-BEARING
25 9245142 CONE-BEARING
26 9245234 CASE
27 9428202 SCREW
28 9427249 BOLT
29 9428203 NUT
30 15019476 BOLT
31 9114897 SCREW
32 272554 BOLT
33 9419496 NUT
34 223775 BOLT
35 9005581 WASHER
36 9219084 PIN-DOWEL
37 9272352 GEAR
38 9272346 SPIDER
39 9272386 PINION
40 137393 BEARING
AXLE GROUP-REAR
ITEM PART NO. DESCRIPTION
1 15303353 STUD
2 15023773 RING-BEARING
3 9250715 WASHER-HARDENED
4 9256947 STOP-OSCILLATION
5 9252271 RETAINER
6 9252272 RETAINER
7 9244595 WASHER
8 9244596 CUP-SPLIT
9 9244594 SPACER
10 9244597 PIN
11 9240460 BEARING
12 9121127 HOSE ASSY
13 15246949 BREATHER
14 9062518 LINK
15 9015245 SPACER
16 9425517 RING-SNAP
17 9167506 BEARING
18 9411017 FITTING-GREASE
19 9411019 NIPPLE-GREASE
20 118753 ELBOW
21 9355771 NUT
22 9153231 BOLT
23 223446 BOLT
24 9117927 PLUG-MAGNETIC
25 223458 BOLT
26 9250715 WASHER-HARDENED
27 9018241 BOLT
28 9015247 PIN
29 454989 BOLT
30 9267949 WASHER-HARDENED
31 9419493 LOCK NUT
32 15247329 SHAFT-AXLE
33 9413420 RING-SNAP
34 15254803 A-FRAME ASSEMBLY
35 9136639 NIPPLE
36 144033 BUSHING
37 116436 CONNECTOR
38 15249531 HOSE ASSY
39 8040335 ELBOW
PLANETARY GEARING-BEAR
ITEM PART NO. DESCRIPTION
1 15007337 GEAR
2 15247747 RING
3 15006049 PLATE-RETAINER
4 9064575 BOLT
5 9410967 O RING
6 9272898 WASHER
7 9064713 SPACER
8 9259203 PINION
9 9243839 PINION-SUN GEAR
10 9433581 BEARING
11 9252957 RING-SNAP
12 9064589 PIN-PLANETARY
13 9125576 O RING-BULK
14 15303440 BOLT LOCK HAD 0.62-11
15 9008525 PLUG-MAGNETIC
16 139230 SCREW
17 9056740 NUT
18 15005352 RING-GEAR
19 9122119 BOLT
20 274189 LOCK NUT
21 9113457 LOCK WIRE
WHEEL，RIM AND TYPE-REAR
ITEM PART NO. DESCRIPTION
1 9418488 CONE
2 456513 CUP
3 15246293 WHEEL HUB DRIVE
4 15246401 CUP-BEARING
5 15246400 BEARING
6 15006041 SHIM PACK
7 15022012 BASE
8 9239465 LANGE
9 15013508 BAND-BEAD SEAT
10 15013509 LOCK RING
11 15006040 PLATE
12 15008253 BOLT
13 9253468 STUD
14 15233471 BAR
15 454988 BOLT
16 9074815 STUD
17 15023746 CLAMP
18 9433576 NUT
19 9113457 LOCK WIRE
20 15232303 STEM-VALVE
21 9142286 CORE
22 9116292 CAP
23 15230598 STEM-VALVE
24 15231534 EXTENSION-VALVE
25 9013007 STUD
BRAKE PARTS-FRONT WHEEL-RIGIDS
ITEM PART NO. DESCRIPTION
1 15231643 BRAKE ASSY
2 15265338 PIN
3 15266826 KIT-LINING
4 15265344 PISTON
5 15265529 KIT-SEAL
6 15231642 DISC-BRAKE
7 223756 BOLT
8 9250715 WASHER-HARDENED
9 9270005 WASHER-HARDENED
BRAKE PARTS-REAR WHEEL-RIGIDS
ITEM PART NO. DESCRIPTION
1 15302757 O RING
2 15302752 SEAL ASSEMBLY-FACE T
3 15272374 RING-GTL TORIC
4 223495 BOLT
5 9019631 WASHER-HARDENED
6 445943 BOLT
7 15302758 O RING
8 9019631 WASHER-HARDENED
9 9419497 NUT-NYLON INSERT
10 9065332 WASHER
11 15247047 SPRING HOUSING MACHINE
12 9068505 SCREW
13 2276784 SCREW-BLEED
14 15258053 SEAL-O RING
15 784094 PIN-DOWEL
16 784088 PIN-DOWEL
17 9065306 SPRING
18 9065305 SPRING
19 15303608 SEAL ASSEMBLY-PISTON
20 15302125 PARKING PISTON
21 15258054 SEAL-O RING
22 9183205 PLUG
23 274248 O RING
24 15302798 DAMPER ASSEMBLY
25 15302796 DISC-FRICTION
26 15302797 PLATE-SPLINTED
27 15231497 SERVICE PISTON MACHINE
28 936559 PIN
29 179814 BOLT
30 9064810 PLATE-RETAINER
31 9064750 PIN-RETAINING
32 9065315 SPRING
33 444692 PLUG
34 15258051 SEAL-D RING
35 15258038 SEAL-D RING
36 15307381 PISTON HOUSING ASSEMBLY
37 15303368 STUD 1.00-8 UNC 2A X
38 15249911 DUST CAP
39 15303611 GUIDE RING-ROD
40 15303610 SEAL ASSEMBLY-ROD
41 9113457 LOCK WIRE
42 223437 BOLT
43 9125576 O RING-BULK
44 15247216 SEAL ASSEMBLY
45 15247433 O RING
46 15247046 HOUSING-SEAL
47 15302759 O RING
FRONT RIDE CYLINDER
ITEM PART NO. DESCRIPTION
1 15247974 FRONT RIDE CYLINDER
2 6525035 VALVE ASSY-RECHARGE
3 9013688 VALVE-CHECK
4 444613 PLUG
5 15019179 O RING
6 9015056 RING-BACKUP
7 9068668 TUBE
8 9068667 BOLT
9 9079450 PISTON
10 9014093 RING-WEAR
11 9169669 O RING
12 9036867 RING-BACKUP
13 9079449 RETAINER SEAL
14 15233756 SEAL
15 9120034 O RING
16 186659 BOLT
17 9411010 FITTING-GREASE
18 15255936 RING-WEAR
19 9014235 SEAL
20 9256606 WIPER
21 9079451 ROD PISTON
22 169162 BALL
23 106671 FILLING-RELIEF
24 274209 LOCKNUT
25 9068666 WASHER-HARDENED
26 9019631 WASHER-HARDENED
27 9430339 BOLT
28 9014267 DISC (1.00 IN)
29 103332 LOCK WASHER
30 271613 BOLT
31 9017345 KEY-SHEAR
REAR RIDE CYLINDER
ITEM PART NO. DESCRIPTION
1 15246289 CYLINDER ASSEMBLY
2 9167506 BEARING
3 9425517 RING-SNAP
4 9411010 FITTING-GREASE
5 9068666 WASHER-HARDENED
6 9013688 VALVE-CHECK
7 444613 PLUG
8 169162 BALL
9 9256608 WIPER
10 9411019 NIPPLE-GREASE
11 15233757 SEAL
12 9015063 SEAL-RETAINER
13 9414567 BOLT
14 9015056 RING-BACKUP
15 9154249 O RING
16 9015057 RING-WEAR PISTON
17 9079588 PISTON
18 9068667 BOLT
19 9015066 TUBE ASSEMBLY
20 6525035 VALVE ASSY-RECHARGE
21 9030336 RING-LARGE
22 9034883 CORE
23 9015036 SPACER
24 9250113 PIN ASSEMBLY
25 179837 BOLT
26 15247495 BELLOWS
27 9078136 PLATE
28 9139822 CLAMP
29 179883 BOLT
30 103329 LOCK WASHER
31 9217321 WASHER
32 9015038 PIN ASSEMBLY
BATTERY AND CABLES
ITEM PART NO. DESCRIPTION
1 15258443 ISOLATOR RELAY
2 15305862 SOLENOID-24V START
3 15258442 CABLE-BATTERY EARTH
4 103319 LOCK WASHER
5 102634 NUT
6 103340 WASHER
7 103320 LOCK WASHER
8 9131853 CLIP
9 179845 BOLT
10 108580 LOCK WASHER
11 102635 NUT
12 7551826 HOSE-BULK
13 15226158 BATTERY
BATTERY MOUNTING
ITEM PART NO. DESCRIPTION
1 9268885 LOCK
2 9270000 WASHER-HARDENED
3 9140612 PAD
4 9383885 CLAMP
5 15233485 BOLT
ELECTRICAL LIGHTING SYSTEM
ITEM PART NO. DESCRIPTION
1 15230426 HEADLAMP
2 15271433 BULB-H4
3 15258873 BULB
4 15258872 BULB
5 15258783 LAMP-SIDE INDICATOR
6 15273641 LAMP-REVERSE
7 15273642 BULB-24V
8 15273643 LAMP-RETARDER
9 15273644 LAMP-DIR/STOP/TAIL
10 15273718 HARNESS-REAR LT ASSY
11 102634 NUT
12 103320 LOCK WASHER
13 108580 LOCK WASHER
14 106263 WASHER T50
15 117966 GROMMET
16 102635 NUT T50
1 15273449 ALTERNATOR
2 15273450 STARTER
3 15001878 ALARM-REVERSE
4 455537 BOLT
5 274208 LOCK NUT
SWITCHES AND SENSORS
ITEM PART NO. DESCRIPTION
1 15300082 SWITCH，PRESSURE
2 15300083 SWITCH，PRESSURE
3 15300084 SWITCH，PRESSURE
4 15300085 SWITCH，PRESSURE
5 15300086 SWITCH，PRESSURE
6 15300087 SWITCH，TEMPERATURE
7 15300088 SWITCH，PRESSURE
8 15300089 SWITCH，TEMPERATURE
9 15300090 SWITCH，PRESSURE
10 15303318 SWITCH，PRESSURE
11 15300116 SENDER，PRESSURE
12 15300117 SENDER，TEMPERATURE
13 15300118 SENDER，TEMPERATURE
14 15300119 SENDER，PRESSURE
15 15236152 SWITCH-LEVEL FLOAT
16 15259165 SWITCH ASSEMBLY
17 103339 WASHER
18 15227711 SEAL
19 15301169 SEAL
20 15229742 SEAL
21 15301115 ADAPTER
22 15301114 ADAPTER
FUEL TANK AND MOUNTING
ITEM PART NO. DESCRIPTION
1 273469 PLUG
2 9251163 CAP ASSY
3 9251092 GASKET
4 9183385 GASKET
5 9027836 GASKET
6 9049192 DIAL
7 9141915 O RING
8 179883 BOLT T50
9 103329 LOCK WASHER
10 9268885 LOCK
11 9355771 NUT T50
12 103332 LOCK WASHER
13 9160607 STRAINER
14 274141 NUT
FUEL LINES
ITEM PART NO. DESCRIPTION
1 15257968 COOLER ASSY-FUEL
2 179812 BOLT
3 103320 LOCK WASHER
4 108580 LOCK WASHER
5 6441020 BOLT
6 9152893 CLIP
7 274208 LOCK NUT
8 15300403 HOSE ASSY
9 15230961 VALVE-BALL SHUT OFF
10 9411742 CONNECTOR
11 15258243 REDUCER
12 9402828 ELBOW
13 9402866 ELBOW
ACCELERATOR LINKAGE
ITEM PART NO. DESCRIPTION
1 15267720 KIT-ROLLER
RADIATOR ASSEMBLY
ITEM PART NO. DESCRIPTION
1 15271380 CLAMP-CROSS BRACE
2 15268676 FERRULE-RUBBER
3 15268681 NUT
4 15268682 WASHER
5 15268694 LOCK WASHER
6 15268693 SCREW
7 15268686 NUT
8 15268685 LOCK NUT
9 15268963 WASHER
10 15268964 LOCK WASHER
RADIATOR MOUNTING
ITEM PART NO. DESCRIPTION
1 9014683 ROD
2 220081 NUT
3 103332 LOCK WASHER
4 9187694 WASHER
5 9186377 MOUNT-FLEXIBLE
6 9182221 MOUNT-FLEXIBLE
7 179841 BOLT
8 108580 LOCK WASHER
9 102635 NUT
10 179839 BOLT
11 271621 BOLT
12 9355771 NUT
13 106263 WASHER
14 15233339 SCREEN
15 179812 BOLT
16 103340 WASHER
17 9139927 WASHER
18 274208 LOCK NUT
19 15233341 SCREEN
20 179847 BOLT
21 15233342 SCREEN
22 179843 BOLT
RADIATOR PIPING
ITEM PART NO. DESCRIPTION
1 15248752 CLAMP-SPRING
2 15258111 HOSE-SILICONE
3 15252489 HOSE-SILICONE
4 444698 PLUG
5 187395 COUPLING
RADIATOR HEADER TANK AND HOSES
ITEM PART NO. DESCRIPTION
1 15256846 TANK-REMOTE HEADER
2 179881 BOLT
3 116453 ELBOW
4 179883 BOLT
5 9270000 WASHER-HARDENED
6 9030744 TUBING
7 9131851 CLIP
8 179839 BOLT
9 9158575 HOSE
10 9139803 CLAMP
11 15230178 NUT-WINDOW
12 444692 PLUG
13 15254921 CLAMP
14 15236152 SWITCH LEVEL-FLOAT
15 9024628 GASKET
16 9066282 CAP
17 179838 BOLT
18 9251501 BRACKET
19 9131877 CLIP
20 9060202 WASHER-HARDENED
21 102635 NUT
OIL COOLER-DISC BRAKES
ITEM PART NO. DESCRIPTION
1 15232379 HEAT EXCHANGER
2 9208131 GASKET
3 179841 BOLT
4 186284 BOLT
5 108580 LOCK WASHER
6 15254657 CLAMP
7 15301134 TUBE-BRAKE COOLER
8 223438 BOLT
9 15257598 TUBE-BRAKE COOLER
10 179839 BOLT
11 15258083 HOSE-SILICONE
OIL COOLER PIPING-DISC BRAKES
ITEM PART NO. DESCRIPTION
1 103329 LOCK WASHER
2 108580 LOCK WASHER
3 179887 BOLT T50
4 186609 BOLT
5 186646 BOLT
6 186689 BOLT T50
7 186725 BOLT
8 274209 LOCK NUT
9 15301257 HOSE ASSEMBLY（C）2.0
10 179889 BOLT T50
11 9067454 CLAMP
12 179883 BOLT T50
13 15305765 HOSE ASSY-32MPHT 90 D
14 9167602 FLANGE-SPLIT
15 9267949 WASHER-HARDENED
16 15257105 HOSE ASSY
17 9409984 FLANGE-SPLIT
18 9409985 FLANGE-SPLIT
19 9417713 NUT
20 15001428 NUT-STACKING
21 15001429 CLAMP
22 15002672 O RING
23 15004712 CLAMP
24 15004748 NUT-STACKING
25 15008260 O RING
26 15008261 O RING
27 15008262 O RING
28 15014979 BUSHING-SPLIT
29 15305764 HOSE ASSY-32MPHT 0 DE
30 15305111 HOSE ASSY
31 15021376 HOSE ASSY （R）2.50MPHT
32 15305766 HOSE ASSY-32MPHT 90 D
33 15251937 ADAPTOR
34 15244830 ELBOW
35 15302230 HOSE ASSY
OIL COOLER AND PIPING-TRANS
ITEM PART NO. DESCRIPTION
1 9208131 GASKET
2 9409985 FLANGE-SPLIT
3 15008262 O RING
4 103329 LOCK WASHER
5 179885 BOLT T50
6 15258083 HOSE-SILICONE
7 15248752 CLAMP-SPRING
8 15231546 HEAT EXCHANGER-TRANS
9 15231535 SADDLE
10 15231537 CLAMP
11 179843 BOLT
12 274208 LOCK NUT
13 179850 BOLT
14 106263 WASHER T50
15 179837 BOLT
17 186284 BOLT
18 179841 BOLT
19 108580 LOCK WASHER
20 15305874 HOSE ASSY （C）2.00MPH
21 15305875 HOSE ASSY （C）2.00MPH
22 15305876 HOSE ASSY （C）2.00MPH
23 15305878 TUBE ASSY
24 15004712 CLAMP
25 15004748 NUT-STACKING
26 15254657 CLAMP
27 444625 PLUG （0.38 IN）
STEERING LINES
ITEM PART NO. DESCRIPTION
1 15252849 ADAPTOR
2 15252989 TEE
3 15253042 ADAPTOR
4 15252844 ADAPTOR
5 15252869 TEE
6 9052234 PLUG
7 15251938 ADAPTOR
8 15252977 TEE
9 15271082 O RING KIT-ORFS
10 15252933 HOSE ASSY
11 15301059 HOSE ASSY
12 15301061 HOSE ASSY
13 15301060 HOSE ASSY
14 15252998 HOSE ASSY
15 15253689 HOSE ASSY
16 15253006 HOSE ASSY
17 15253007 HOSE ASSY
18 15251951 TEE
19 9410968 O RING
20 179885 BOLT
21 9409984 FLANGE-SPLIT
22 103329 LOCK WASHER
23 15001403 CLAMP
24 15001405 CLAMP
25 9410970 O RING
26 15001428 NUT-STACKING
27 15001429 CLAMP
28 9410967 O RING
29 9409981 FLANGE-SPLIT
30 179839 BOLT
31 15253192 HOSE ASSY
32 108580 LOCK WASHER
33 15253129 ELBOW
34 15305112 HOSE ASSY
35 15251979 ADAPTOR
36 15251819 NIPPLE-DIAGNOSTIC
37 15252696 ADAPTOR
38 455537 BOLT
39 274208 LOCK NUT
40 15253138 HOSE ASSY
41 179881 BOLT
42 9190982 STRAP
43 106263 WASHER
44 9417713 NUT
45 15251035 COVER PLUG-ACCUM
46 15253875 CLAMP-PIPE
STEERING LINES FILTRATION
ITEM PART NO. DESCRIPTION
1 271568 BOLT
2 103331 LOCK WASHER
3 6351020 BOLT
4 179889 BOLT T50
5 274209 LOCK NUT
6 103323 WASHER
7 15254320 BOLT
8 102635 NUT T50
9 108580 LOCK WASHER
10 179839 BOLT
11 15301788 HOSE ASSY
TANK AND MOUNTING-STEERING
ITEM PART NO. DESCRIPTION
1 9246992 CAP ASSY
2 9202069 GASKET
3 179839 BOLT
4 108580 LOCK WASHER
5 444619 PLUG
6 15265318 ELEMENT
7 15025076 SCREEN ASSY-SUCTION
8 15230178 NUT-WINDOW
9 9188290 ROD
10 2389616 NUT-WING
11 9188288 GASKET
12 223437 BOLT
13 9411566 NUT
14 9191596 WASHER
15 186646 BOLT
16 9267949 WASHER
17 274766 NUT
PUMP-STEERING
ITEM PART NO. DESCRIPTION
1 15244762 PUMP-PISTON
2 9058104 KIT-SEAL
3 9058110 ROTATING GROUP
4 147114 SCREW
5 9050191 SEAL
6 9050194 SPRING
7 9113457 LOCK WIRE
ACCUMULATOR-STEERING
ITEM PART NO. DESCRIPTION
1 15007340 ACCUMULATOR ASSY
2 15021812 PISTON
3 15021811 SEAL
4 9190980 O RING
5 9220661 RING-BACKUP
6 6525035 VALVE ASSY-RECHARGE
7 274253 O RING
STEERING VALVE
ITEM PART NO. DESCRIPTION
1 15252436 STEERING VALVE ASSY
2 15269825 KIT-SEAL
3 9055616 GLAND-BUSHING SEAL
4 457151 BEARING
5 104919 BALL-CHECK
DOUBLE RELIEF VALVE
ITEM PART NO. DESCRIPTION
1 444692 PLUG
2 114496 NUT-JAM
STEERING CYLINDER
ITEM PART NO. DESCRIPTION
1 15273474 KIT-SERVICE
2 9253494 BUSHING
3 9253566 BUSHING
4 9258621 PIN
5 9018310 RING-RETAINER
6 9018309 PLATE
7 9411017 FITTING-GREASE
8 179841 BOLT
RELIEF VALVE-STEERING
ITEM PART NO. DESCRIPTION
1 15247593 VALVE-ACCUMULATOR
2 15265078 CARTRIDGE
FILTER-STEERING
ITEM PART NO. DESCRIPTION
1 15266831 ELEMENT
STEERING LINKAGE
ITEM PART NO. DESCRIPTION
1 9016972 SPACER
2 444692 PLUG
3 15231622 SPINDLE ASSY-LH
4 15231623 SPINDLE ASSY-RH
5 9016972 SPACER
6 15228999 ROD-END
7 15228998 ROD-END
8 179839 BOLT
9 15237869 PIN
10 9015216 BEARING
11 9018310 RING-RETAINER
12 9018309 PLATE
13 444613 PLUG
14 9411019 NIPPLE-GREASE
15 9253567 SEAL
16 15230266 BUSHING
17 9384854 PIN
18 9355772 NUT
19 272328 NIT
20 9411010 FITTING-GREASE
21 271563 BOLT
22 9354243 LOCKNUT
23 15230267 WASHER TH
24 223489 BOLT
25 9253567 SEAL
26 131296 PLUG EXP
27 9014471 PIN LOCK
28 15237698 TIE ROD
29 103426 PIN-COTTER
30 9372594 STUD
31 9253492 PAD
32 179839 BOLT
33 108580 LOCK WASHER
34 15304346 BELL CRANK
35 427667 NUT
36 9253566 BUSHING
37 9258621 PIN
STEERING COLUMN MOUNTING
ITEM PART NO. DESCRIPTION
1 6430801 NUT
2 7150815 WASHER
3 15255304 STEERING WHEEL
4 108580 LOCK WASHER
5 9060202 WASHER-HARDENED
6 7160830 LOCK WASHER
LINES AND FITTINGS-BODY HOIST
ITEM PART NO. DESCRIPTION
1 120378 NUT
2 103328 LOCK WASHER
3 9267949 WASHER-HARDENED
4 179860 BOLT
5 179885 BOLT
6 186609 BOLT
7 179839 BOLT
8 186646 BOLT
9 186725 BOLT
10 193221 BOLT
11 9167602 FLANGE-SPLIT
12 15304125 HOSE ASSY 2.00MP
13 9409981 FLANGE-SPLIT
14 9409983 FLANGE-SPLIT
15 9409984 FLANGE-SPLIT
16 9409985 FLANGE-SPLIT
<
