LOW RANGE GEARING AND CLUTCHES
ITEM PART NO. DESCRIPTION
1 23041616 PLATE-INTER SPLINED
2 6776610 PLATE-REACTION
3 6833146 ANCHOR
4 6838274 KEY
5 6833203 SPRING
6 6832485 SEAL
7 6837689 PISTON
8 6833147 HOUSING-1ST/2ND RANGE
9 23048005 BEARING
10 6779653 RETAINER
11 23045938 BOLT
12 6838652 HUB
13 6833152 GEAR-1ST RANGE
14 6832598 RING-SNAP
15 6750220 RING
16 6776295 RING
17 6777747 SLEEVE
18 23047987 BEARING
19 6832158 GEAR-1ST RANGE
20 6776353 WASHER
21 23017066 CARRIER ASSY
22 6777764 CIRCLIP
23 23016635 PIN
24 6776261 KEY
25 23041615 PLATE
26 6777796 PLATE-REACTION
27 6777792 CIRCLIP
28 6779144 ANCHOR
29 23016627 SPRING
REV RANGE GEARING AND CLUTCHES
ITEM PART NO. DESCRIPTION
1 6776237 BUSH
2 6832249 HUB
3 6777797 CIRCLIP
4 23013833 CARRIER ASSY-REV
5 6776247 SEAL
6 181360 HEX BOLT
7 23011176 BEARING
8 23041007 WASHER
9 6777795 PLATE
10 6777792 CIRCLIP
11 6832138 PLATE-FRICTION
12 6777796 PLATE-REACTION
13 6777766 GEAR ASM
14 6777768 PISTON
15 6777992 KIT-SEAL
16 6777995 KIT-SEAL
REAR COVER GROUP
ITEM PART NO. DESCRIPTION
1 6831992 GASKET
2 6834881 COVER ASM
3 23046162 GEAR
4 6834878 GEAR
5 29502027 BEARING SUP
6 23046430 SEAL
7 6838678 GASKET
8 6778691 RETAINER
9 223435 BOLT
10 103325 WASHER SPRING LOCK
11 6776249 GEAR-SPEEDO DRIVE
12 552868 GASKET
13 103320 LOCK WASHER
14 6835104 PICKUP-MAGNETIC
THROTTLE SENSOR AND MOUNTING
ITEM PART NO. DESCRIPTION
1 15251067 SENSOR-THROTTLE
FRONT DRIVELINE
ITEM PART NO. DESCRIPTION
1 15300850 DRIVELINE-FRONT
2 15272863 BOLT
3 15272865 UNIVERSAL JOINT
4 15336537 DRIVELINE-FRONT
REAR DRIVELINE
ITEM PART NO. DESCRIPTION
1 15258114 DRIVELING 12.5 C-DEAR
2 15271476 UNIVERSAL JOINT ASS
3 15271477 BOLT/NUT SET
4 15272031 BOLT
WHEEL、RIM AND TYPE-FRONT
ITEM PART NO. DESCRIPTION
1 9262036 GASKET
2 9062605 SEAL
3 9016245 RING-SNAP
4 9062643 WASHER
5 9418488 CONE
6 456513 CUP
7 15236015 WHEEL-FRONT
8 9253468 STUD
9 9062983 CLAMP
10 9209490 O RING
11 9433576 NUT
12 9063834 FLANGE
13 15017037 BASE
14 9074982 BAND-BEAD SEAT
15 9074983 LOCKRING
16 9427249 CUP-BEARING
17 9428203 CONE-BEARING
18 9019828 SHIM PACK
19 9019600 PLATE
20 9256717 BOLT
21 9019601 CAP
22 454989 BOLT
23 103329 LOCKWASHER
24 9113457 LOCKWIRE

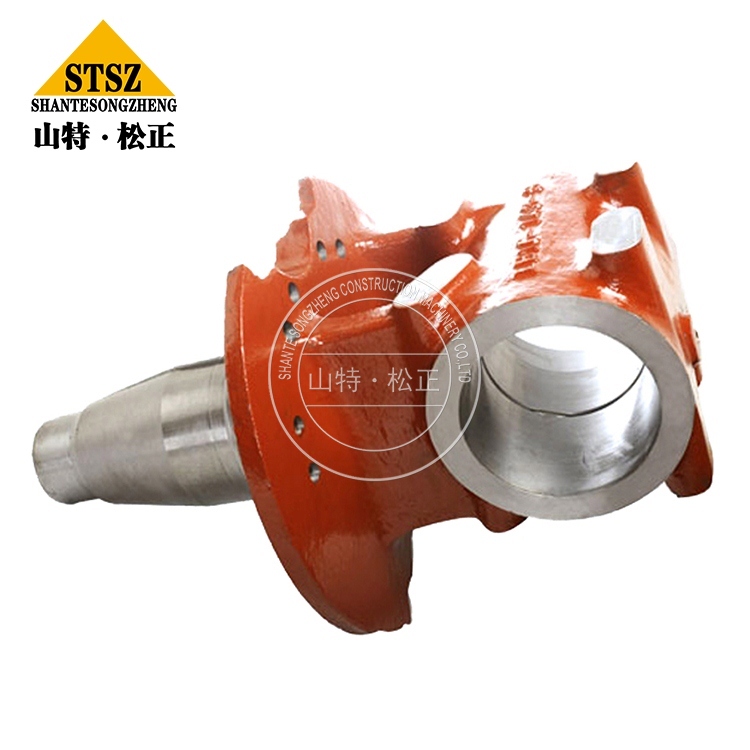

25 15302218 SPINDLE ASSEMBLY-LEF
26 9062561 BUSHING
27 454988 BOLT
28 15302219 SPINDLE ASSEMBLY-RIG
29 9074815 SPUD
30 9051190 GROMMET
31 15017039 VALVE ASSY-INST
32 9116292 CAP
33 9142286 CORE
REAR AXLE DIFFERENTIAL
ITEM PART NO. DESCRIPTION
1 139230 SCREW
2 223441 BOLT
3 15007603 PLATE
4 15315244 YOKE ASSY
5 15007621 SLEEVE
6 15007642 DIFFERENTIAL ASSY
7 9114897 SCREW
8 139191 SCREW
9 15007635 RETAINER
10 271567 BOLT
11 15007647 SHIM（0.010 IN）
12 15007646 SHIM（0.003 IN）
13 15000417 SEAL
14 15235836 CUP
15 15235835 CONE
16 15019463 GEAR-SET
17 15235837 CUP
18 15235838 CONE
19 15007650 SHIM（0.010 IN）
20 15007649 SHIM（0.003 IN）
21 15007634 HOUSING
22 9192618 DOWEL-BUSHING
23 9216692 BOLT
24 9113457 LOCKWIRE
25 9170517 BOLT
26 9245142 LOCK
27 9245234 BEARING-ADJUSTER
28 9419496 NUT
29 223775 BOLT
30 9427249 CUP-BEARING
31 9428203 CONE-BEARING
32 15019476 CASE
33 9430296 BOLT
34 9005581 WASHER
35 9219084 PIN-DOWEL
36 9272352 GEAR-SET
37 9272346 SPIDER
38 9272386 PINION
39 137393 BEARING-ADJUSTER
40 9141860 O RING
AXLE GROUP-REAR
ITEM PART NO. DESCRIPTION
1 15307373 BANJO AND SPINDLE ASSY
2 15307375 SPINDLE-LH
3 15307376 SPINDLE-RH
4 15303353 STUD
5 15228477 SPHERICAL BRG
6 9383747 RETAINER
7 9383748 RETAINER
8 9430298 BOLT
9 9411019 HIPPLE-GREASE
10 15228481 WASHER
11 15228479 CLIP SPLIT
12 15228480 PIN TAPERED
13 15228478 WASHER HARDENED
14 15229951 BOLT
15 274191 LOCKNUT
16 15019795 BOLT
17 9016660 WASHER-HARDENED
18 9069959 STOP-OSCILLATION
19 9015398 PIN ASSEMBLY
20 9217321 WASHER
21 120350 LOCKWASHER
22 223488 BOLT
23 9062323 LING STABILIZER
24 9010661 BUSHING
25 9425519 RING-SNAP
26 179883 BOLT
27 15246949 BREATHER
28 9117927 PLUG-MAGNETIC
29 444679 PLUG
30 103329 LOCKWASHER
31 9015397 SPACER
32 15255431 A-FRAME ASSEMBLY
33 9419493 NUT
34 15017032 SHAFT-AXLE
35 9136639 NIPPLE
36 144033 BUSHING
37 116436 CONNECTOR
38 15249532 HOSE ASSY
39 9122167 CONNECTOR
40 9250715 WASHER
PLANETARY GEARING-REAR
ITEM PART NO. DESCRIPTION
1 9113457 LOCKWIRE
2 15019509 BOLT DRILL HEAD 0.50
3 9008525 PLUG-MAGNETIC
4 273469 PLUG
5 15009631 CARRIER-PLANETARY
6 15019510 PINION-PLANETARY
7 15233267 RETAINER
8 15232937 PLATE-THRUST
9 15233274 RETAINER
10 9074668 SPACER
11 15238327 BEARING
12 15238323 SPACER-BEARING
13 454910 BOLT
14 15233266 PIN-PLANETARY
15 15019502 BOLT DRILL HEAD 0.38
16 9074670 SPACER
17 15238317 PLANET PINION-FIRS
18 15019484 PINION-SUN
19 15019492 PLATE-RETAINER
20 15236593 CARRIER-PLANTRY M/CD
21 15238322 SPACER-THRUST
22 15233271 COVER-PLANTRY M/CD
23 15019519 WASHER-THRUST
24 15238319 SUN PINION-FIRST S
25 15245290 WASHER-THRUST
26 9125576 O RING-BULK
27 15228596 RING-GEAR
28 15233268 COVER CARRIER
29 9430309 BOLT
30 9250715 WASHER-HARDENED
31 9141863 O RING
32 15233269 RETAINER
33 15019494 RETAINER
34 15019483 RING-GEAR
35 9413420 RING-SNAP
36 15019482 CARRIER-RING GEAR
37 9433576 NUT
38 15246062 WASHER-THRUST
39 15015363 BEARING
40 139230 SCREW
WHEEL RIM AND TYPE-REAR
ITEM PART NO. DESCRIPTION
1 15021101 PLATE
2 9063017 SHIM-PACK
3 15233384 CONE-BEARING
4 9437224 CONE-BEARING
5 15233385 CUP-BEARING
6 15233302 WHEEL
7 9253468 STUD
8 9255689 STUD
9 9063025 BOLT
10 9113457 LOCKWIRE
11 9209490 O RING
12 15017037 BASE
13 9063834 FLANGE
14 9074982 BAND-BEAD SEAT
15 9074983 LOCKRING
16 15017033 BAND SPACER
17 273469 PLUG
18 15023746 CLAMP
19 9433576 NUT
20 9211054 VALVE ASSY
21 9116292 CAP
22 9142286 CORE
23 15245476 EXTENSION-VALVE
24 9437225 CUP-DEARING
25 179880 BOLT
26 103329 LOCKWASHER
27 9074815 SPUD
28 9051190 GROMMET
29 15017039 VALVE ASSY-INST
BRAKE PARTS-FRONT WHEEL-RIGIDS
ITEM PART NO. DESCRIPTION
1 15300389 BRAKE HEAD ASSY
2 9058895 BOLT
3 9058896 WASHER
4 15267039 PLATE-THRUST
5 15266825 KIT-LINING
6 9058900 BOLT
7 9058901 WASHER
8 9058905 PISTON
9 15271389 KIT-SEAL
10 9074283 WASHER-HARDENED
11 15300580 CARRIER-FRONT
12 15247360 DISC-BRAKE
13 15248418 BOLT
14 9226983 BOLT
15 15025751 BOLT
16 9008198 WASHER
17 15237514 SHIM（0.060 IN）
18 15237515 SHIM（0.030 IN）
BRAKE PARTS-REAR WHEEL-RIGIDS
ITEM PART NO. DESCRIPTION
1 15233275 SEAL HOUSING
2 15302757 O RING
3 15302752 SEAL ASSEMBLY
4 15272374 O RING
5 9064938 BOLT
6 223493 BOLT
7 9019631 WASHER
8 15302758 O RING
9 9072627 BOLT
10 15310256 WASHER-HARDENED
11 15307380 BRAKE ASSY
12 223437 BOLT
13 9065332 WASHER
14 15247047 SPRING HOUSING MACHINED
15 9068505 SCREW
16 2276784 SCREW-BLEED
17 15258053 SEAL-O RING
18 784094 PIN-DOWEL
19 784088 PIN-DOWEL
20 9065306 SPRING
21 9065305 SPRING
22 15303608 SEAL ASSY-PISTON
23 15302125 PARKING PISTON
24 15258054 SEAL-O RING
25 15302126 DISC HOUSING
26 9183205 PLUG
27 274248 O RING
28 15302798 DAMPER ASSY
29 15302796 DISC FRICTION
30 15302797 PLATE-SPLINTED
31 15231497 SERVICE PISTON MACHINED
32 936559 PIN
33 179814 BOLT
34 9064810 PLATE-RETAINER
35 9064750 PIN-RETAINING
36 9065315 SPRING
37 444692 PLUG
38 15258051 SEAL-D RING
39 15258038 SEAL-D RING
40 15307381 PISTON HOUSING ASSY
41 15303368 STUD
42 15249911 DUST CAP
43 15303609 GUIDE RING-PISTON
44 15303611 GUIDE RING-ROD
45 15303610 SEAL ASSY-ROD
46 15256201 DISC DRIVER
47 9113457 LOCK WIRE
48 15247046 HOUSING-SEAL
49 15302759 O RING
50 9419497 NUT-NYLON INSERT
51 15247216 SEAL ASSY
52 15247433 O RING
53 15231422 WASHER
FRONT RIDE CYLINDER
ITEM PART NO. DESCRIPTION
1 15250974 FRONT RIDE CYL ASSEM
2 9384099 CAP-END
3 9411010 FITTING-GREASE
4 9013688 VALVE-CHECK
5 444613 PLUG
6 15016161 O RING
7 9069472 RING-BACKUP
8 9069476 TUBE
9 9269710 BOLT
10 9069475 PISTON
11 9069468 RING-PISTON
12 15250973 ROD-PISTON
13 169162 BALL
14 15233291 SEAL
15 9222091 O RING
16 223457 BOLT
17 9355771 NUT
18 9383858 TUBE ASSY
19 15250986 RING-WEAR
20 6525035 VALVE ASSY-RECHARGE
21 9030336 RING-LARGE
22 9034883 CORE
23 9069467 SEAL
24 9069466 WIPER
25 9068666 WASHER-HARDENED
26 106671 FITTING-RELIEF
27 9069958 COVER
28 271617 BOLT
29 9250715 WASHER-HARDENED
30 9019478 KEY-SHEAR
31 9423349 BOLT HEX 1.25-7 UNC
32 9259718 WASHER-HARDENED
33 15244531 BOLT
REAR RIDE CYLINDER
ITEM PART NO. DESCRIPTION
1 9079698 REAR CYL ASSY
2 9079696 ROD
3 9010661 BUSHING
4 9010662 RING-SNAP
5 9411010 FITTING-GREASE
6 9068666 WASHER-HARDENED
7 9013688 VALVE-CHECK
8 444613 PLUG
9 169162 BALL
10 9016787 WIPER
11 15237500 SEAL
12 9423349 BOLT HEX 1.25-7 UNC
13 9016784 RING-BACKUP
14 9016783 O RING
15 9016788 RING-WEAR
16 9079697 PISTON
17 9269710 BOLT
18 6525035 VALVE ASSY-RECHARGE
19 9030336 RING-LARGE
20 9034883 CORE
21 9217321 WASHER-HARDENED
22 9411019 NIPPLE-GREASE
23 9384151 BOOT ASSY
24 9139825 CLAMP
25 179837 BOLT
26 179883 BOLT
27 9015397 SPACER
28 15000838 PIN-RIDE CYLINDER
29 15019238 BOLT
30 15000991 WASHER-HARDENED
31 273852 LOCKNUT
32 9015398 PIN ASSEMBLY
33 103329 LOCK WASHER
CABLES/HARNESSES-CAB
ITEM PART NO. DESCRIPTION
1 15259091 HARNESS，DASH
2 15259105 HARNESS，CAB
3 15302853 HARNESS，CONSOLE
4 15302870 TIMER RELAY
BATTERY AND CABLES
ITEM PART NO. DESCRIPTION
1 15305862 MAGNETIC SWT-START SOL
2 15253875 CLAMP-PIPE
3 15302350 CABLE ASSEMBLY
4 15302353 CABLE ASSEMBLY
5 15256097 CABLE ASSY
6 15232468 CABLE
7 15302354 CABLE ASSEMBLY
8 15302355 CABLE ASSEMBLY
9 15256096 CABLE ASSY
10 15256094 CABLE ASSY
11 15258745 COVER ASSEMBLY
12 6350612 SCREW
13 102635 NUT T50
14 103320 LOCKWASHER
15 179845 BOLT
16 7160630 WASHER
17 108580 LOCKWASHER
18 103319 LOCKWASHER
19 15304322 CABLE ASSEMBLY
20 15258443 ISOLATOR RELAY
21 15310266 PLATE-MTG
22 103340 WASHER
23 103320 WASHER-LOCK
24 179795 BOLT
25 103319 WASHER
BATTERY MOUNTING
ITEM PART NO. DESCRIPTION
1 179890 BOLT
2 9270000 WASHER-HARDENED
3 9263815 CLAMP-BATTERY
4 15236524 BOLT
5 9060202 WASHER-HARDENED
ELECTRICAL LIGHTING SYSTEM
ITEM PART NO. DESCRIPTION
1 15230426 HEADLAMP
2 15271433 BULB-H4
3 15258783 LAMP-SIDE INDICATOR
4 15258873 BULB-H4
5 15258872 BULB-24V 21W H/DUTY
6 15273641 LAMP-REVERSE
7 15273642 BULB-24V 70W HALOGEN
8 15273643 LAMP-RETARDER
9 15273644 LAMP-DIR/STOP/TAIL
10 15273718 HARNESS-REAR LIGHTS
11 102634 NUT
12 103320 LOCKWASHER
13 108580 LOCKWASHER
14 106263 WASHER
15 117966 GROMMET
16 102635 NUT
ALTERNATOR AND MOUTING
ITEM PART NO. DESCRIPTION
1 15273449 ALTERNATOR-24V/65A
STARTER MOTOR
ITEM PART NO. DESCRIPTION
1 15273450 STARTER
REVER ALARM
ITEM PART NO. DESCRIPTION
1 15001878 ALARM-REVERSE
2 455537 BOLT
3 274208 LOCKNUT
SWITCHES AND SENSORS
ITEM PART NO. DESCRIPTION
1 15300082 SWITCH-PRESSURE
2 15300083 SWITCH-PRESSURE
3 15300084 SWITCH-PRESSURE
4 15300085 SWITCH-PRESSURE
5 15300086 SWITCH-PRESSURE
6 15300087 SWITCH-TEMPERATURE
7 15300090 SWITCH-PRESSURE
8 15300089 SWITCH-TEMPERATURE
9 15300088 SWITCH-PRESSURE
10 15303318 SWITCH-PRESSURE
11 15300116 SWITCH-PRESSURE
12 15301960 SENDER-TEMPERATURE
13 15300118 SENDER-TEMPERATURE
14 15300119 SENDER-PRESSURE
15 15236152 SWITCH-LEVEL FLOAT
16 15259165 SWITCH ASSY-BODY UP
17 103339 WASHER
18 15227711 SEAL
19 15301169 SEAL
20 15301115 ADAPTER
21 15301114 ADAPTER
22 15304214 ELBOW
23 15310396 SWITCH-TEMP
RADIO CASSETTE AND SPEAKERS
ITEM PART NO. DESCRIPTION
1 106263 WASHER
2 108580 LOCKWASHER
ELECTRICAL HORN
ITEM PART NO. DESCRIPTION
1 15303068 HORN
2 15303069 HORN
FUEL TANK AND MOUNTING
ITEM PART NO. DESCRIPTION
1 15255485 TANK ASSEMBLY-FUEL
2 179883 BOLT
3 103329 LOCKWASHER
4 273469 PLUG
5 9251163 CAP ASSY
6 9251092 GASKET
7 9183385 GASKET
8 9027836 GASKET
9 9049192 DIAL
10 9141915 O RING
11 9268885 LOCKWASHER
12 9122167 CONNECTOR
13 9129561 HOSE ASSY
14 187396 COUPLING
15 6750967 CAP-BREATHER
16 15234879 STRAP
17 9355771 NUT
18 223452 BOLT
19 9250715 WASHER-HARDENED
20 9419493 NUT
21 9160607 STRAINER
FUEL LINES
ITEM PART NO. DESCRIPTION
1 15227369 HOSE ASSY
2 15256641 HOSE ASSY （R）.62MPHT
3 9402828 ELBOW
4 9402827 ELBOW
5 9402711 CONNECTOR
ACCELERATOR LINKAGE
ITEM PART NO. DESCRIPTION
1 6350625 BOLT
2 6430601 NUT
3 7160630 LOCKWASHER
4 15301491 ACCELERATOR CABLE
5 15231443 JOINT-BALL
6 15302073 SPIGOT
7 108580 LOCKWASHER
8 15236609 BRACKET
9 179850 BOLT
10 103328 LOCKWASHER
11 15302092 UTILITY CABLE
12 15302066 PLATE
13 6440830 SCREW
14 271505 NUT
15 15302065 PIN
16 15302357 BENT PLATE
17 6350840 SCREW
18 7150815 WASHER
19 103339 WASHER
20 9362607 BRACKET
21 15302373 BENT PLATE
22 9056269 CLIP-RUBBERIZED
23 9100399 SPRING CLIP
24 179795 BOLT
25 109084 NUT
RADIATOR ASSEMBLY
ITEM PART NO. DESCRIPTION
1 15311874 RADIATOR ASSY
2 15275344 TANK-TOP
3 15268993 TANK-CENTER
4 15275345 TANK-BOTTOM
5 15270492 FRAME SIDE-LH
6 15268998 STIFFNER-CTRE TANK
7 15269000 ROD-CROSSBRACE
8 15275346 BAR-SUPPORT
9 15268709 BOLT-U
10 15268694 WASHER-SPRING SQR.
11 15268710 PLATE
12 15269002 GASKET-CENTRE TANK
13 15268691 WASHER
14 15268991 WASHER
15 15269004 PLATE-CENTRE TUBE
16 15268676 FERRULE-RUBBER
17 15268675 FERRULE-BRASS
18 15275433 TUBE-JOULE
19 15268963 WASHER
20 15268964 LOCKWASHER
21 15268689 LOCKWASHER
22 15268682 WASHER
23 15268688 SCREW
24 15269007 SCREW
25 15269008 SCREW
26 15268693 SCREW
27 15268690 NUT
28 15268681 NUT
29 15268685 LOCKNUT
30 15268686 NUT
31 15268997 SET-STIFFENER BARS
RADIATOR MOUNTING
ITEM PART NO. DESCRIPTION
1 103332 LOCKWASHER
2 106263 WASHER
3 179839 BOLT
4 179841 BOLT
5 179843 BOLT
6 223464 BOLT
7 274141 NUT
8 444625 PLUG（0.38 IN）
9 444679 PLUG
10 9139927 WASHER
11 9182221 MOUNT-FLEXIBLE
12 9186377 MOUNT-FLEXIBLE
13 9187694 WASHER
14 15254781 PLATE-ANTIRECIRC`N
15 274208 LOCKNUT
16 9419493 LOCKNUT
17 15238144 RING-SHROUD
18 15238145 SCREEN LH
19 15238146 SCREEN RH
20 15247519 ROD-RADIATOR
21 15254459 SHROUD ASSY
22 103341 WASHER
23 179833 BOLT
24 15256620 PLATE-ANTIRECIRC`N
RADIATOR PIPING
ITEM PART NO. DESCRIPTION
1 9214526 CLAMP
2 9257169 TIE-CABLE
3 15304383 SILICONE HOSE
4 9267949 WASHER
5 179887 BOLT
6 103339 WASHER
7 103319 LOCKWASHER
8 15323236 CLAMP
RADIATOR HEADER TANK AND HOSES
ITEM PART NO. DESCRIPTION
1 15254778 REMOTE HEADER TANK
2 15230178 NUT-WINDOW
3 15255877 HOSE ASSY
4 15255879 HOSE ASSY
5 15255880 HOSE ASSY
6 9228659 HOSE-BULK
7 9402826 ELBOW
8 9402708 CONNECTOR
9 9152893 CLIP
10 179837 BOLT
11 179838 BOLT
12 179883 BOLT
13 102635 NUT
14 444698 PLUG
15 103319 LOCKWASHER
16 108580 LOCKWASHER
17 109084 NUT
18 9267949 WASHER-HARDENED
19 9066282 CAP
20 9024628 GASKET
21 15236152 SWITCH-LEVEL FLOAT
22 9030744 TUBING
23 179839 BOLT
OIL COOLER PIPING-DISC BRAKES
ITEM PART NO. DESCRIPTION
1 15236505 TUBE ASSY
2 15245374 TUBE ASSY
3 15236511 TUBE ASSY
4 9071313 TUBE ASSY
5 15236508 TUBE ASSY
6 15250497 TUBE ASSY
7 15236509 TUBE ASSY
8 15301594 PIPE ASSEMBLY
9 15258071 HOSE ASSY
10 15248180 HOSE ASSY
11 15250626 HOSE ASSY
12 15258073 HOSE ASSY
13 15300378 HOSE ASSY
14 15245140 HOSE ASSY
15 15245138 HOSE ASSY
16 15245139 HOSE ASSY
17 15245132 HOSE ASSY
18 15257628 HOSE ASSY
19 15245134 HOSE ASSY
20 15245135 HOSE ASSY
21 15245133 HOSE ASSY
22 15245136 HOSE ASSY
23 15300455 BRACKET
24 15300456 CLAMP
25 15250566 BRACKET ASSY
26 9067454 CLAMP
27 15300496 CLAMP
28 15024973 CLAMP-TUBE
29 9072826 CLAMP
30 15004713 CLAMP
31 15004712 CLAMP
32 15001429 CLAMP
33 15004744 BUSHING-SPLIT
34 15015251 BUSHING-SPLIT
35 15015249 BUSHING-SPLIT
36 15004748 NUT-STACKING
37 15001428 NUT-STACKING
38 179883 BOLT
39 179890 BOLT
40 179839 BOLT
41 179841 BOLT
42 9167602 FLANGE-SPLIT
43 9409985 FLANGE-SPLIT
44 9409984 FLANGE-SPLIT
45 15002672 O RING
46 15008262 O RING
47 15008261 O RING
48 179885 BOLT
49 179887 BOLT
50 103329 LOCKWASHER
51 15008260 O RING
52 102635 NUT-STACKING
53 103328 LOCKWASHER
54 179893 BOLT
55 187433 BOLT
56 108580 LOCKWASHER
57 9077325 CLIP-P
58 179833 BOLT
59 15258078 BRACKET
60 15001430 CLAMP
61 15258079 HOSE ASSY
OIL COOLER AND PIPING-TRANS
ITEM PART NO. DESCRIPTION
1 15247679 HOSE-SILICONE
2 15308924 CLAMP
3 15311854 GASKET
4 116453 ELBOW
5 15005193 HOSE ASSY
6 15017770 GASKET
7 223437 BOLT
8 179883 BOLT
9 9419469 NUT
10 9191596 WASHER
11 15311852 TUBE ASSY
12 15311851 TUBE ASSY
13 9270000 WASHER-HARDENED
14 15255867 HOSE-SILICONE
15 15312242 HOSE ASSY
16 15312243 HOSE ASSY
17 15311566 TUBE ASSY
18 15301830 TUBE ASSY
19 9167602 FLANGE-SPLIT
20 15002672 O RING
21 186725 BOLT
22 103329 LOCKWASHER
23 9194658 CLAMP
24 186628 BOLT
25 106263 WASHER
26 274208 LOCKNUT
27 15227354 BRACKET
28 15258771 CLAMP
29 179795 BOLT
30 109084 NUT
OIL COOLER AND PIPING-TRANS
ITEM PART NO. DESCRIPTION
1 15311848 TRANS COOLER ASSY
STEERING LINES
ITEM PART NO. DESCRIPTION
1 15251951 TEE
2 15251938 ADAPTOR
3 15251937 ADAPTOR
4 15251939 ADAPTOR
5 15253340 ADAPTOR
6 15301808 HOSE ASSY
7 15252902 TEE
8 15253094 ADAPTOR
9 15251945 ELBOW
10 15253129 ELBOW
11 15253219 ELBOW
12 15252681 ELBOW
13 7150815 WASHER
14 15254978 ELBOW
15 15253040 ADAPTOR
16 15252977 TEE
17 15253220 ADAPTOR
18 15252696 ADAPTOR
19 15254988 BRACKET
20 15254921 CLAMP
21 15254991 BRACKET
22 15301623 HOSE ASSY-16HP(ORFS)
23 15301624 HOSE ASSY-16HP(ORFS)
24 15301625 HOSE ASSY-12HPHT(ORFS)
25 15301626 HOSE ASSY-12HPHT(ORFS)
26 15301809 HOSE ASSY
27 15254949 HOSE ASSY
28 15254950 HOSE ASSY
29 15254951 HOSE ASSY
30 15254952 HOSE ASSY
31 15254953 HOSE ASSY
32 15254954 HOSE ASSY
33 15254955 HOSE ASSY (C) .75HPHT
34 15254957 HOSE ASSY
35 15254958 HOSE ASSY
36 15255148 HOSE ASSY
37 15255612 HOSE ASSY
38 15255316 HOSE ASSY
39 15255113 HOSE ASSY
40 15255123 TUBE ASSY
41 15301524 TUBE CLAMP DIA.32-DOUB
42 15001429 CLAMP
43 15001428 NUT-STACKING
44 15001427 ADAPTOR-THREAD
45 179839 BOLT
46 15001430 CLAMP
47 15004748 NUT-STACKING
48 179889 BOLT
49 15014977 BUSHING-SPLIT
50 9410971 O RING
51 179885 BOLT
52 9409985 FLANGE-SPLIT
53 103329 LOCKWASHER
54 9409982 FLANGE-SPLIT
55 9410968 O RING
56 179841 BOLT
57 108580 LOCKWASHER
58 15255216 HOSE ASSY
59 15255218 HOSE ASSY
60 6351020 BOLT
61 102635 BOLT
62 179837 BOLT
63 15004748 NUT-STACKING
64 15004712 CLAMP
65 15015251 BUSHING-SPLIT
66 15251819 NIPPLE-DIAGNOSTIC
67 9052234 PLUG
68 186285 BOLT .38*4.00
69 15255345 HOSE ASSY
70 271565 BOLT
71 15301628 STACKING SCREW
72 15253060 ELBOW
73 15255611 REDUCER
74 15244893 NUT-STACKING
75 15305414 HOSE ASSY
76 15255890 ELBOW
77 15001403 CLAMP
78 15244830 ELBOW
79 106263 WASHER
80 15301627 BENT-PLATE
PUMP-STEERING
ITEM PART NO. DESCRIPTION
1 15256582 STEERING PUMP
2 15270819 PLATE-VALVE
3 15270818 KIT-ROTATING GROUP
4 15270821 SHAFT
PUMP AND ACCUMULATOR MOUNTING
ITEM PART NO. DESCRIPTION
1 9016036 STRAP
2 9417713 NUT
3 106263 WASHER
4 15230188 GUARD
5 179881 BOLT
6 103329 LOCKWASHER
7 9156021 GASKET
8 9179585 STUD
9 103028 NUT
10 9267949 WASHER-HARDENED
11 179883 BOLT
12 15251035 COVER PLUG-ACCUM
13 179885 BOLT
14 15004932 ADAPTOR-PUMP MTG
15 9206866 GASKET
16 15244763 COUPLING-SPLIEND
17 9172766 O RING
ACCUMULATOR-STEERING
ITEM PART NO. DESCRIPTION
1 6525035 VALVE ASSY-RECHARGE
2 274253 O RING
3 223453 BOLT
4 9036867 RING-BACKUP
5 9169669 O RING
6 9018820 SEAL
7 9018813 PISTON
8 9018819 RING-WEAR
STEERING VALVE
ITEM PART NO. DESCRIPTION
1 457151 BEARING
RELIEF VALVE-STEERING
ITEM PART NO. DESCRIPTION
1 15265078 CARTRIDGE
STEERING CYLINDER
ITEM PART NO. DESCRIPTION
1 9014528 CYLINDER-STEERING
2 9014535 TUBE
3 9167506 BEARING-SPHERICAL
4 9425517 RING-SNAP
5 9014542 ROD
6 9256601 WIPER
7 9014532 SEAL AND RING-BACKUP
8 271565 BOLT
9 9256136 RING-BACKUP
10 9141862 O RING
11 9256074 RING-PISTON
12 274191 LOCKNUT
13 179883 BOLT
14 103329 LOCKWASHER
15 9261064 STUD-BALL
16 9018463 RING-RETAINER
17 9261065 BUSHING
FILTER-STEERING
ITEM PART NO. DESCRIPTION
1 15266831 ELEMENT
STEERING LINKAGE
ITEM PART NO. DESCRIPTION
1 15229005 ROD END ASSY
2 179839 BOLT
3 9018309 PLATE
4 9018310 RING-RETAINER
5 9253566 BUSHING
6 15015767 PIN-BALL
7 15228998 ROD-END
8 108580 LOCKWASHER
9 15229006 ROD END ASSY
10 103426 PIN-COTTER
11 9014408 ROD-TIE
12 271563 BOLT
13 9354243 LOCKNUT
14 444613 PLUG
15 9411019 NIPPLE-GREASE
16 15021796 BELL CRANK
17 9014414 WASHER-THRUST
18 15230265 BUSHING
19 9384855 PIN
20 15229654 DISC
21 9072942 PIN-LOCKING
22 9355772 NUT
23 223489 BOLT
24 15254413 STEER ARM-LH
25 15254412 STEER ARM-RH
26 9411010 FITTING-GREASE
27 15317485 SEAL
28 427667 NUT
29 15317486 SEAL
30 9016970 NUT
31 179097 PIN-COTTER
32 15250059 PIN
33 9060302 PLATE
34 179881 BOLT
35 103329 LOCKWASHER
36 9060288 SPACER
STEERING COLUMN MOUNTING
ITEM PART NO. DESCRIPTION
1 6430801 NUT
2 7150815 WASHER
3 15255304 STEERING WHEEL
4 179837 BOLT
5 103329 LOCK WASHER
6 179881 BOLT
7 9060202 WASHER-HARDENED
8 7160830 LOCKWASHER
9 15275116 GAS STRUT ASSY
10 15274171 BUSH-PIVOT
11 15275125 SHOULDER BOLT
LINES AND FITTINGS-BODY HOIST
ITEM PART NO. DESCRIPTION
1 120378 NUT
2 103328 LOCKWASHER
3 103329 LOCKWASHER
4 108580 LOCKWASHER
5 179839 BOLT
6 179862 BOLT
7 179883 BOLT
8 179885 BOLT
9 179887 BOLT
10 179896 BOLT
11 9141918 O RING
12 9167602 FLANGE-SPLIT
13 9409982 FLANGE-SPLIT
14 9409983 FLANGE-SPLIT
15 9409984 FLANGE-SPLIT
16 9410968 O RING
17 9410969 O RING
18 9410970 O RING
19 15001428 NUT-STACKING
20 15001429 CLAMP
21 15014977 BUSHING-SPLIT
22 15004740 BUSHING-SPLIT
23 15004744 BUSHING-SPLIT
24 15004748 NUT-STACKING
25 15014975 BUSHING-SPLIT
26 15255483 TUBE ASSY
27 15001430 CLAMP
28 15004712 CLAMP
29 442733 BOLT
30 15303702 HOSE ASSY
31 15303701 HOSE ASSY
32 15255861 HOSE ASSY
33 15255862 HOSE ASSY
34 15255863 HOSE ASSY
35 15253230 HOSE ASSY
36 15255379 HOSE ASSY
37 15258074 HOSE ASSY
38 15258070 HOSE ASSY
39 15255346 HOSE ASSY
40 15236595 TUBE ASSY
41 15236504 TUBE ASSY
42 15258075 TUBE ASSY
43 15254568 ADAPTOR
44 15254569 ADAPTOR
45 15251994 ADAPTOR-BULKHEAD
46 15251950 TEE
47 15252869 TEE
48 15251936 ADAPTOR
49 15252906 ELBOW
50 15253129 ELBOW
51 15301272 HOSE ASSY
52 15251938 ADAPTOR
53 15252983 ELBOW
54 15247021 BRACKET-TWISTED
55 102635 NUT
56 9131877 CLIP
SERVO CONTROL LINES-BODY
ITEM PART NO. DESCRIPTION
1 15332283 HOSE ASSY
2 15301325 HOSE ASSY
3 15301326 HOSE ASSY
4 15256924 SCREW
5 7160630 LOCKWASHER
6 7160830 LOCKWASHER
7 15300696 ELBOW
8 15255442 ELBOW
9 15251982 ADAPTOR
10 15301344 ELBOW
11 15253073 TEE
12 15301158 COVER
13 15256538 TEE
14 15256639 REDUCER
15 15251951 TEE
16 15301727 NIPPLE-DIAGNOSTIC
17 15253564 ELBOW
18 15253039 ADAPTOR-BULKHEAD
19 15252983 ELBOW
20 179795 BOLT
21 103319 LOCKWASHER
22 103339 WASHER
23 109084 NUT
24 15302374 HOSE ASSY
25 15302375 HOSE ASSY
26 15312474 HOSE ASSY
27 15302379 HOSE ASSY
28 15302380 HOSE ASSY
29 15302381 HOSE ASSY
30 15302386 HOSE ASSY
31 15256589 ELBOW
TANK AND MOUNTING-BODY HOIST
ITEM PART NO. DESCRIPTION
1 15233657 TANK ASSEMBLY
2 444619 PLUG
3 186609 BOLT
4 108580 LOCKWASHER
5 9246992 CAP ASSY
6 15255392 BRACKET
7 15233945 BRACKET
8 186646 BOLT
9 9038953 KIT-ELEMENT
10 9188288 GASKET
11 9202069 GASKET
12 9267949 WASHER-HARDENED
13 223438 BOLT
14 9113457 LOCKWIRE
15 9068999 SCREEN ASSEMBLY
16 9191596 WASHER
17 15230178 NUT-WINDOW
18 9003522 ROD BOLT
19 2389616 NUT-WING
BREATHER LINE-HYDRAULIC TANKS
ITEM PART NO. DESCRIPTION
1 128003 BUSHING
2 141621 ELBOW
3 144034 BUSHING
4 454148 TEE
5 9136639 NIPPLE
6 9258624 COUPLING
7 9423452 ELBOW
8 15246949 BREATHER
9 15251938 ADAPTOR
10 15251953 CAP
11 15255422 HOSE ASSY
PUMP-BODY HOIST
ITEM PART NO. DESCRIPTION
1 15257475 PUMP ASSEMBLY
2 15272175 SERVICE KIT
3 9156021 GASKET
4 9179585 STUD
5 103329 LOCKWASHER
6 103028 NUT
CONTROL VALVE MOUNTING
ITEM PART NO. DESCRIPTION
1 103331 LOCKWASHER
2 102639 NUT
3 271562 BOLT
4 15255892 ADAPTER
5 179862 BOLT
6 179845 BOLT
7 108580 LOCKWASHER
8 102635 NUT
9 106263 WASHER
10 120378 NUT
11 179885 BOLT
12 9267949 WASHER
13 15258123 BRACKET
JOYSTICK-BODY CONTROL
ITEM PART NO. DESCRIPTION
1 15272027 GUIDE BUSH ASSY
2 15272028 SEAL KIT
MANIFOLD RELIEF VALVE
ITEM PART NO. DESCRIPTION
1 9052234 PLUG
RELIEF VALVE
ITEM PART NO. DESCRIPTION
1 9025789 O RING
2 9034127 O RING
3 9038666 RING-BACKUP
4 9031299 O RING
HOIST CYLINDERS
ITEM PART NO. DESCRIPTION
1 15227019 CYLINDER ASSEMBLY
2 9014653 TUBE
3 9014649 BUSHING
4 9014362 RING-BACKUP
5 9014593 O RING
6 9256608 WIPER
7 6944596 RING-WEAR
8 9270713 SEAL
9 9354243 LOCKNUT
10 15232053 SEAL-T
11 15232597 TUBE ASSY
12 9014633 RING-PISTON
13 9014131 RING-WEAR
14 15227030 WIPER
15 15227031 RING-WEAR
16 15227032 SEAL
17 15227146 TUBE ASSY
18 9018420 RING-WEAR
19 9014636 O RING
20 9014635 RING-BACKUP
21 223442 BOLT
22 9411010 FITTING-GREASE
23 9018418 PIN
24 9217321 WASHER
25 103329 LOCKWASHER
26 179883 BOLT
27 9256240 HOSE ASSY
28 454096 ELBOW
29 187394 COUPLING
30 9411019 NIPPLE-GREASE
BRAKE LINES-HYDRAULIC
ITEM PART NO. DESCRIPTION
1 15256731 BOLT
2 15256538 TEE
3 15255336 HOSE ASSY
4 15256311 HOSE ASSY
5 15301033 PLATE-PEDAL ASSY
6 15255830 ELBOW-BULKHEAD
7 15255332 HOSE ASSY
8 6350825 BOLT
9 15253055 ELBOW
10 15253039 ADAPTOR-BULKHEAD
11 15252977 TEE
12 109084 NUT
13 15252983 ELBOW
14 15253043 ADAPTOR-BULKHEAD
15 15251938 ADAPTOR
16 15256760 ELBOW
17 15253042 ADAPTOR
18 15256374 ADAPTOR
19 9414094 LOCKNUT
20 15253061 ADAPTOR
21 15253060 ELBOW
22 15253064 ADAPTOR
23 15253121 ELBOW-BULKHEAD
24 15253128 TEE
25 15253181 ELBOW
26 15253182 ELBOW
27 15253647 ELBOW
28 15252849 ADAPTOR
29 15251982 ADAPTOR
30 15253239 ADAPTOR
31 15253242 ELBOW
32 15251979 ADAPTOR
33 103339 WASHER
34 15254346 ADAPTOR
35 15257357 PLATE-TOP
36 7161030 LOCKWASHER
37 15255331 HOSE ASSY
38 138252 SCREW
39 9417713 NUT
40 6525035 VALVE ASSY-RECHARGE
41 15251819 NIPPLE-DIAGNOSTIC
42 15255419 HOSE ASSY
43 15305413 HOSE ASSY
44 15301622 HOSE ASSY
45 15256310 HOSE ASSY
46 15256334 HOSE ASSY
47 15253090 HOSE ASSY
48 15255351 HOSE ASSY
49 15253092 HOSE ASSY
50 15256351 HOSE ASSY
51 15253130 HOSE ASSY
52 15255323 HOSE ASSY
53 15253103 HOSE ASSY
54 15256324 HOSE ASSY
55 15256313 HOSE ASSY
56 15256312 HOSE ASSY
57 15256748 HOSE ASSY
58 15253200 HOSE ASSY
59 15253256 HOSE ASSY
60 15256317 HOSE ASSY
61 15256318 HOSE ASSY
62 15255327 HOSE ASSY
63 15255328 HOSE ASSY
64 15306389 HOSE ASSY
65 15256762 HOSE ASSY
66 15256763 HOSE ASSY
67 15255343 HOSE ASSY
68 15255333 HOSE ASSY
69 15255341 HOSE ASSY
70 15255342 HOSE ASSY
71 15255337 HOSE ASSY
72 15233847 ADAPTOR
73 15255338 HOSE ASSY
74 15233866 ADAPTOR
75 15255344 HOSE ASSY
76 15300869 HOSE ASSY
77 15251939 ADAPTOR
78 15253869 CLAMP
79 15253870 CLAMP-PIPE
80 15253157 ELBOW-BULKHEAD
81 15300442 V-BOLT
82 15238007 CLAMP-BODY ASSY
83 15300425 PLATE
84 15256401
